Product details

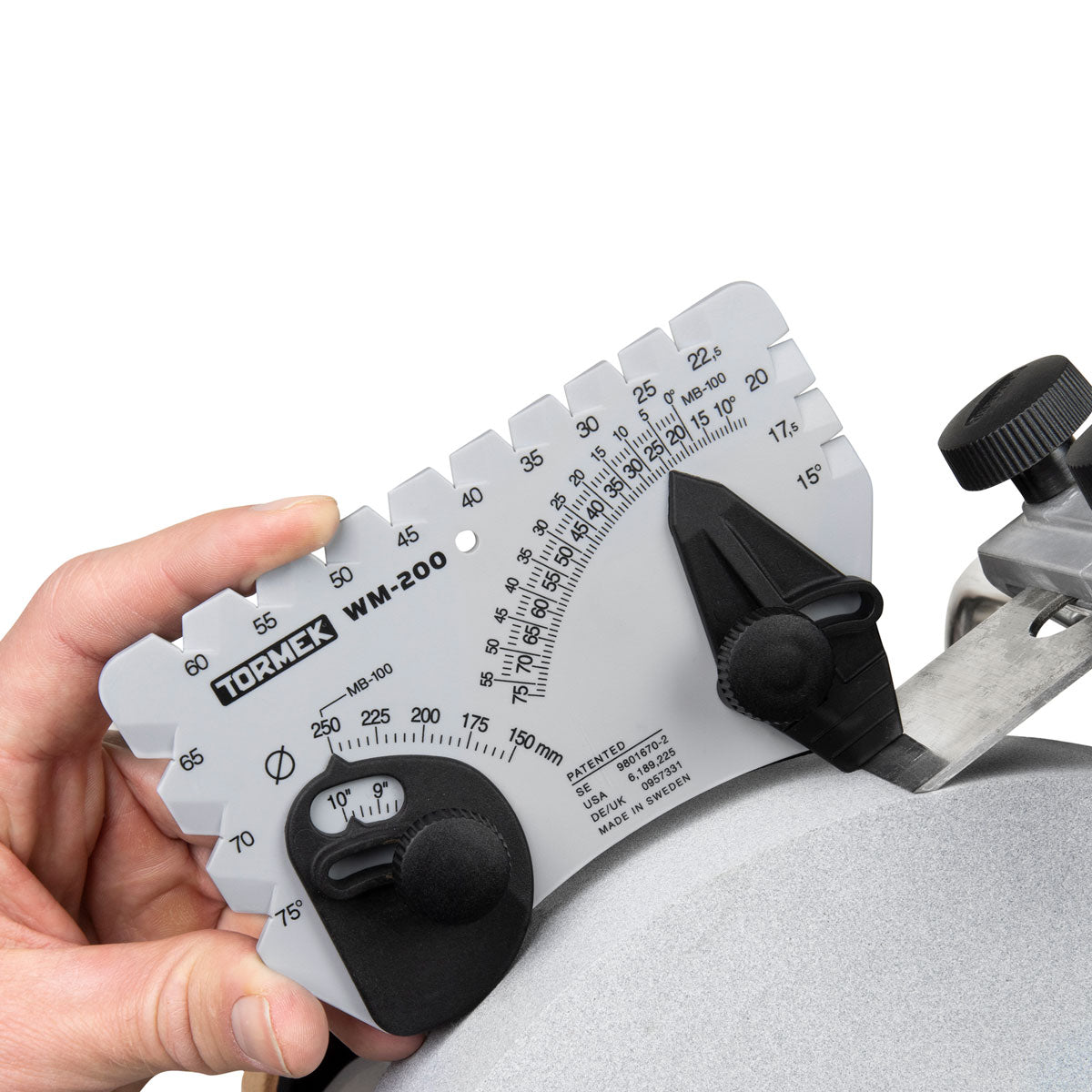

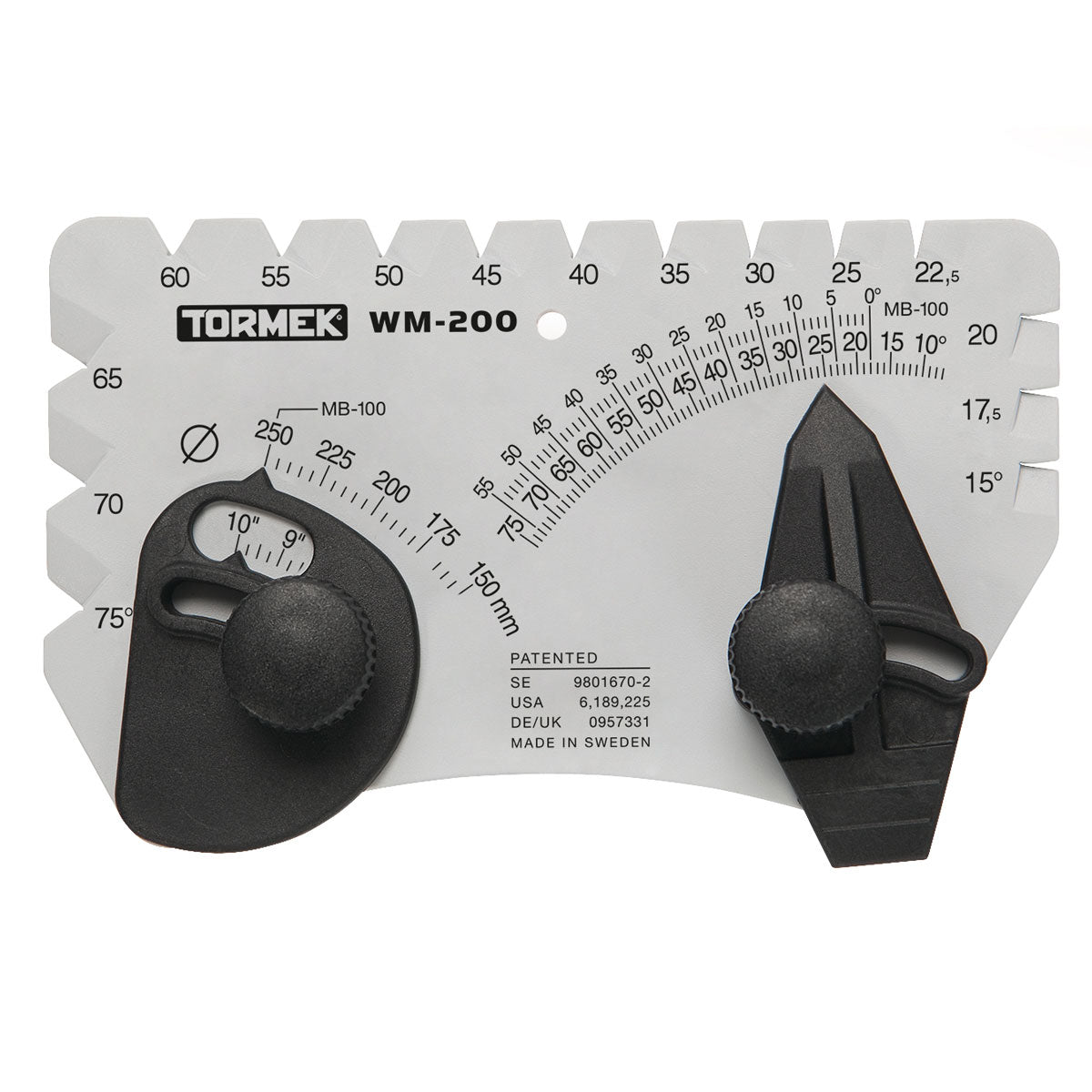

The Tormek WM-200 AngleMaster offers intelligent functions, allowing you to configure the jig prior to sharpening and to determine the current bevel angle of a tool. It can also adapt to the grinding wheel's size, and enable simple sharpening on the side of a diamond grinding wheel.

Overview

Why WM-200 AngleMaster?

  • Measures the existing bevel angle of the tool.
  • Set the jig to the desired sharpening angle before sharpening.
  • Easy to use.
  • Works on grinding wheels from 150 mm (5 7/8") to 250 mm (9 7/8") in diameter.
  • Works with the Tormek T-8, Tormek T-4 and older models.

Sharpen at exactly the right angle

The WM-200 AngleMaster allows for a range of sharpening angles, from 10° to 75°. It is compatible with grinding wheels of 150 mm (5 7/8") to 250 mm (9 7/8") in diameter, ensuring precise setting adjustments even for heavily worn grindstones.

The right angle at your fingertips

The Pro AngleMaster is equipped with dual magnets, allowing for convenient placement on the machine for easy access. This feature applies to all Tormek models, with the exception of the 1200 and T-3. On the Tormek T-4, the AngleMaster can be placed on the metal machine plate, while on the Tormek T-8, it can be placed on the included plate mount.

Weight

Shipping weight 0.10 kg (0.22 lb)

Color

Gray/black

Material

Plastic

Warranty

2-year warranty
