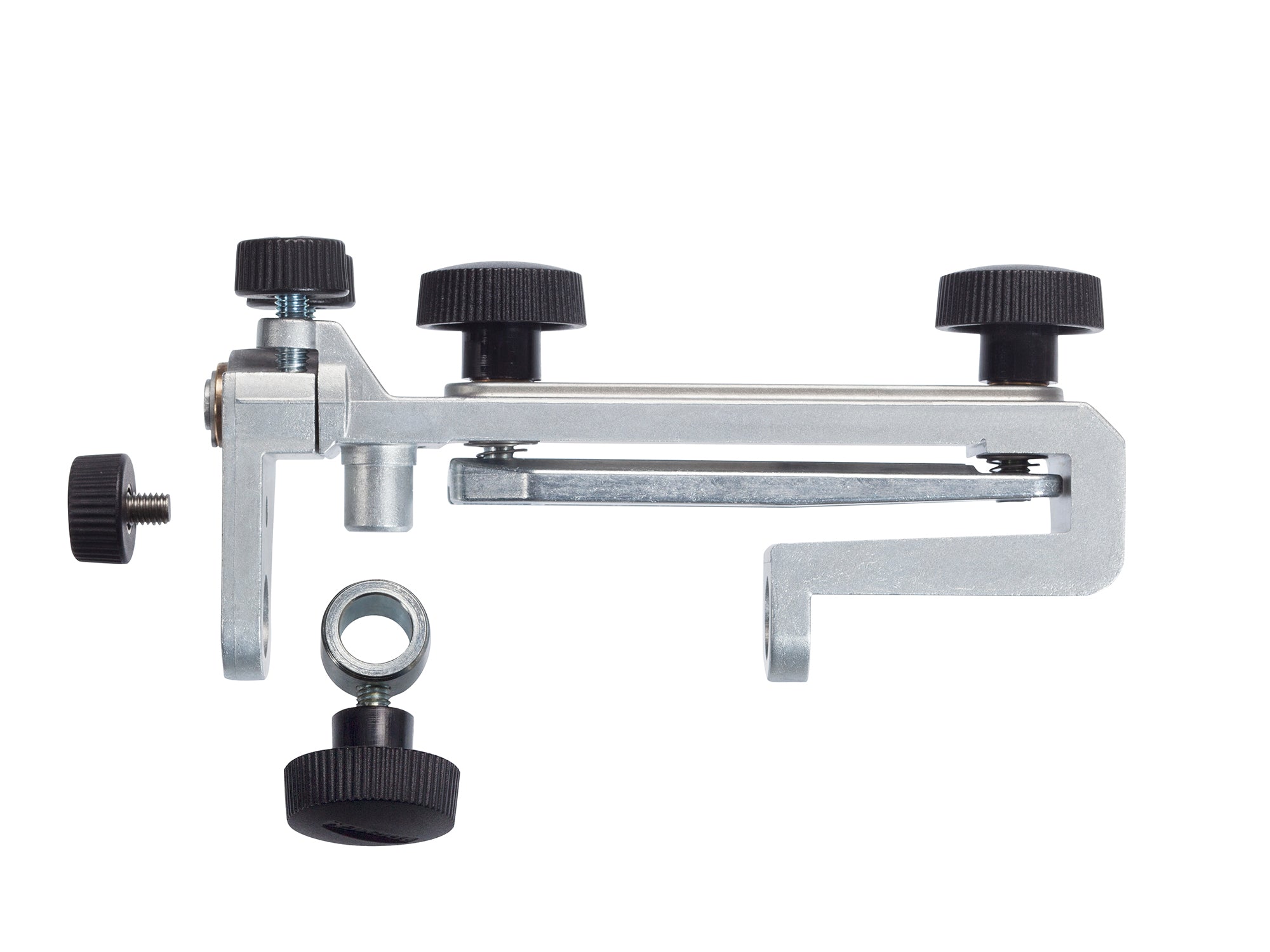

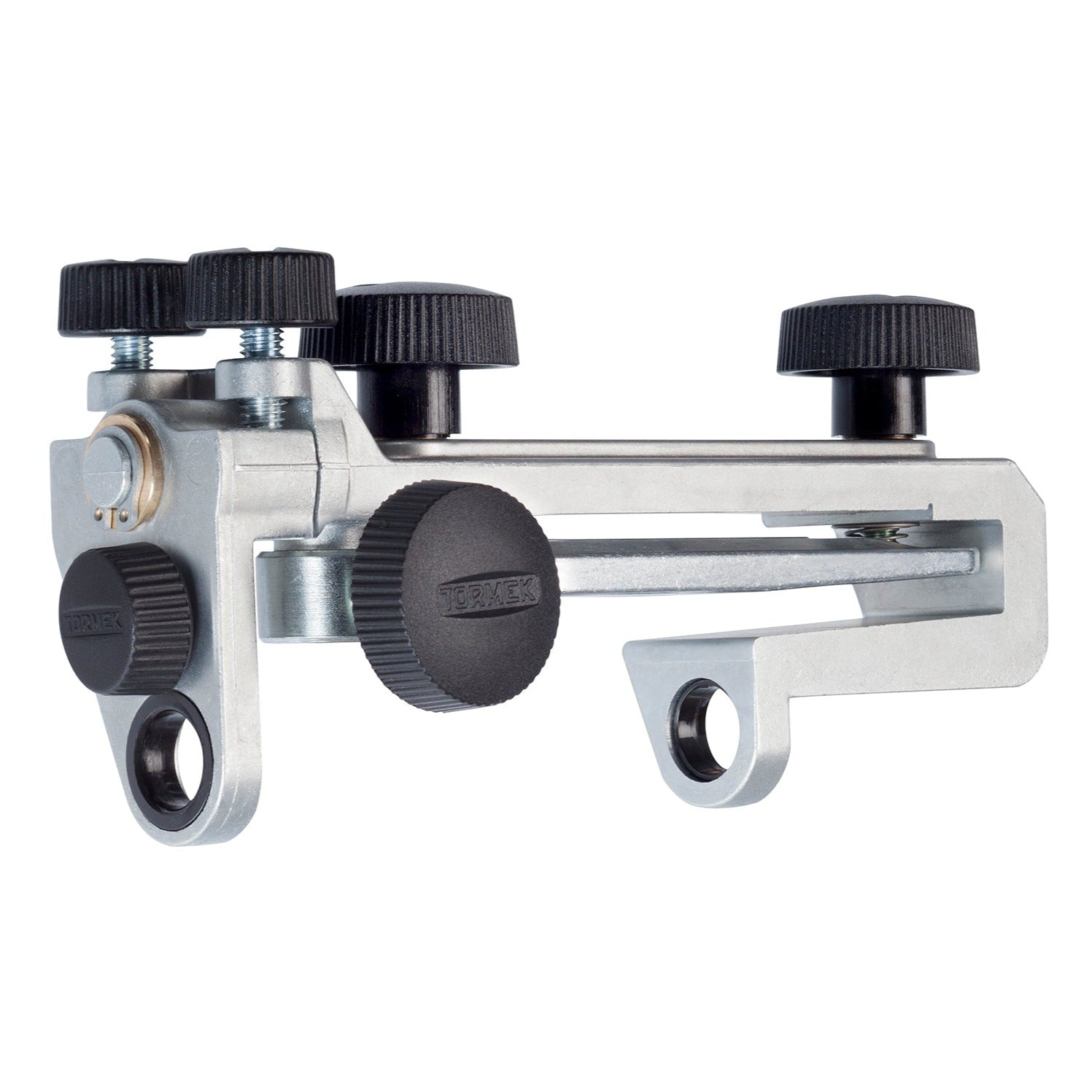

The SE-77 Square Edge Jig simplifies the process of setting your chisels and plane irons for precise 90° sharpening. Its innovative design allows for accurate sharpening with exceptional precision. Additionally, the jig can be adjusted to sharpen edges with a slight curve.
Why SE-77 Square Edge Jig?
- Make your plane irons and chisels sharper than when they were new.
- Easy to set up and use.
- Micro adjust screws to compensate for tiny deviations in tool design.
- Possibility of rounding off the corners of your edge slightly to prevent scratches in the timber you're planing.
- Works with both Tormek T-4 and Tormek T-8, as well as older models.
Mounts firmly and sharpens safely
The jig accurately aligns the tool along its flat top surface. With the flat shoulder of the SE-77 Square Edge Jig, mounting the tool at a 90° angle is effortless. The jig evenly distributes pressure from the center of the plate to the edges, ensuring a secure hold without the need for excessive force. Simply adjust the sharpening angle and position the jig on the universal support at the correct height, and you're ready to start sharpening!
Micro adjust screws for maximum precision
This square edge jig, model SE-77, features a movable end that can be easily adjusted using two small screws. This allows for quick and precise customization of settings, which is especially helpful for narrow tools, non-parallel grinding wheels, or slightly twisted blades. With just a few seconds of adjustment by releasing and tightening the screws, the perfect settings can be achieved.
Sharpening conical chisels
This jig's design is specifically made for conical tools with thicker handles, like Japanese chisels, for easier positioning and sharpening. The safety stops ensure the jig stays on the universal support bar and prevents the tool from slipping off the grinding wheel, ultimately eliminating any risk of injury to your fingers while sharpening. Suitable for sharpening chisels and plane irons up to 77 mm (3.03") in width.
Sharpen plane irons with rounded edges
The SE-77 Square Edge Jig features an adjustable end that allows for easy optimization of chamfering, providing the ideal shape for your hand plane. Simply position the tool below the marked pivot point on the jig and adjust the knobs for increased pendulum movement and a more pronounced bevel on the edges. The degree of chamfer depends on the type of plane and is approximately the same as the shavings produced.
